On October 13, 2024, SpaceX made history with the successful launch and landing of its Starship Flight 5 test vehicle.

The mission was always designed to showcase the immense power and potential of the fully reusable Starship system, which will eventually carry humans and cargo to the Moon, Mars, and beyond.

The standout event was SpaceX’s groundbreaking feat of using giant robotic arms, nicknamed “chopsticks,” to catch the falling Super Heavy booster and return it to the launch pad—a critical step towards rapid reusability.

The Chopsticks Technique

The star of the Flight 5 mission was undoubtedly the “chopsticks” – a pair of colossal mechanical arms attached to the Starship’s Mechazilla launch tower. These articulated appendages are a marvel of engineering, measuring 18 feet tall. Here’s how the system works:

  • As the Super Heavy booster separates and begins falling back to Earth, it fires a subset of its Raptor engines to control its descent trajectory.
  • The booster guides towards the launch tower, aiming for the open chopstick arms. Precise navigation is achieved using a combination of GPS, radar, and visual sensors.
  • At the crucial moment, the chopsticks clamp down on hard points built into the booster’s frame, arresting its motion. Shock absorbers and active dampening mitigate the immense forces involved.
  • With the booster safely in its grasp, the chopsticks gently lower it back onto the launch mount, ready for inspection, refurbishment and re-flight.

This approach offers several key advantages over traditional recovery methods like drone ships or landing legs:

  1. Faster turnaround: By returning boosters directly to the pad, SpaceX can drastically reduce the time and effort needed to prepare rockets for their next mission. The goal is to enable Starship flights within hours rather than weeks.
  2. Increased precision: Catching boosters in midair provides more control than trying to land them on a tiny target. It reduces the risk of tipping or damaging the rocket.
  3. Simplified design: Eliminating the need for deployable landing gear on the booster makes it lighter, simpler, and cheaper – critical for a rapidly reusable system.

While the concept may seem like science fiction, SpaceX has been quietly perfecting the technology for years. Starship’s chopsticks build upon the legacy of Falcon 9’s autonomous drone landings and fairing recovery ships. Each attempt, whether a success or “rapid unscheduled disassembly,” provides invaluable data to refine the system.

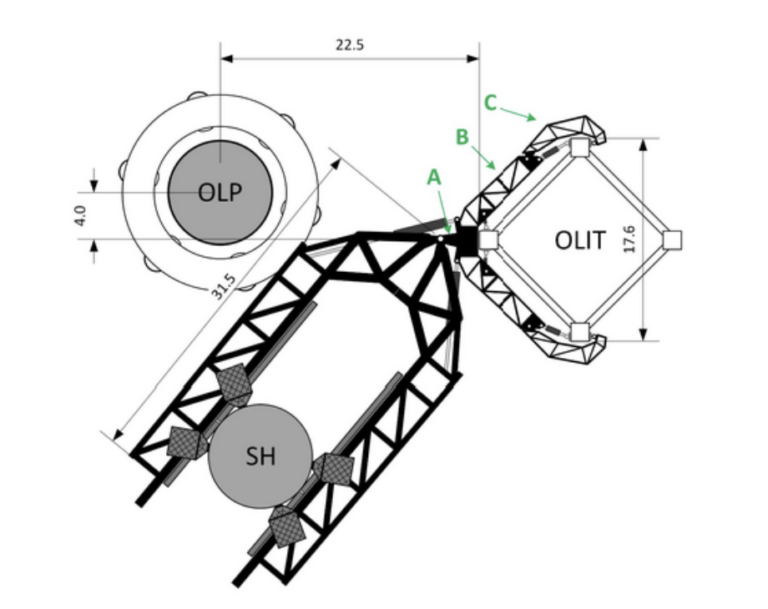

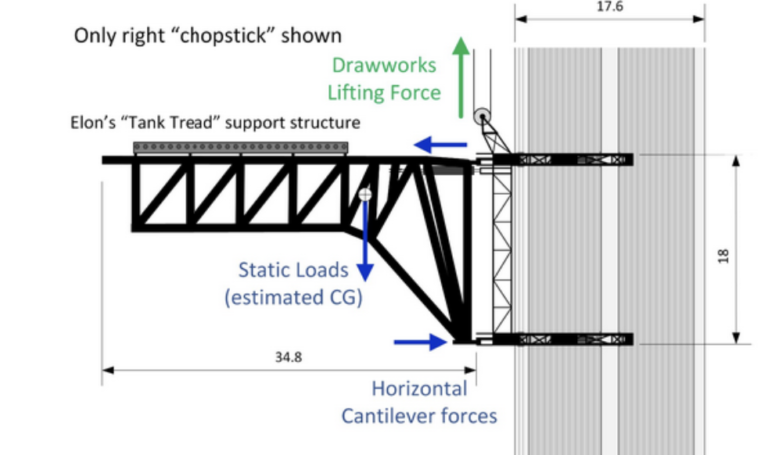

chopsticks 1 chopsticks 2

The Flight 5 mission itself was highly choreographed. At 8:25 AM EDT, the 400-foot-tall Starship vehicle lifted off from SpaceX’s Starbase facility in Boca Chica, Texas. Powered by 33 methane-fueled Raptor engines on the Super Heavy booster and six on the Starship upper stage, it quickly accelerated through the atmosphere.

At an altitude of 40 miles, the stages separated roughly three minutes into the flight. The upper stage ignited its engines to continue into orbit while the Super Heavy booster flipped around and began its descent. Guidance fins and engine burns helped steer it back towards the launch site.

Meanwhile, the Starship upper stage soared to nearly 90 miles altitude before commencing a global circuit at 17,000 mph. After completing a full orbit, it aligned itself for reentry over the Indian Ocean. A series of engine burns and control manoeuvres brought the vehicle down horizontally through the atmosphere, its heat shield glowing incandescent from the immense temperatures. As the booster approached the tower back in Texas, SpaceX’s launch engineers held their collective breath.

The flight director manually closed the chopsticks, snatching the 71-meter-tall rocket from the air. Mission control gasped in amazement and cheered in triumph as the tower arms wrapped around their prize. A new chapter in spaceflight had begun.

Implications

The successful chopsticks catch marks more than an impressive engineering feat – it signals a fundamental shift in how we approach space travel.

chopsticks

Fully and rapidly reusable rockets have long been a holy grail for aerospace companies, promising to slash the costs of reaching orbit.

Estimates suggest that Starship, once operational, could reduce payload prices to under $10 per kilogram. For comparison, the Space Shuttle costs around $54,500/kg.

Of course, realizing this grand vision will require many more test flights and iterations. SpaceX still needs to demonstrate reliable, repeatable booster catches and successful recoveries of the Starship upper stage. Refining the heat shielding, avionics, and other critical systems is ongoing. But if Starship can deliver on its promises, it has the potential to be a true game-changer for spaceflight. By making space more accessible than ever before, it could help humanity become a truly multi-planetary species.

Despite the undeniable progress SpaceX has made with Starship, the program has its critics and challenges. Some have raised doubts about the chopstick recovery technique’s feasibility and safety, particularly for crewed flights. The immense forces and precise timing involved leave little margin for error. There are also regulatory hurdles to overcome. The FAA has sometimes been a source of frustration for SpaceX, with Elon Musk complaining about bureaucratic delays. Environmental assessments, safety certifications, and other legal requirements complicate an already daunting engineering challenge.

Others point to SpaceX’s history of overpromising on timelines as a reason for scepticism. Initial Starship schedules proved overly optimistic, much like those for Falcon Heavy or Crew Dragon. Setbacks like RUDs (rapid unscheduled disassemblies) are to be expected in an iterative test campaign, but they make it hard to nail down firm operational dates. And, of course, there are the inherent risks and unknowns of venturing into uncharted engineering territory.

No one has ever tried to catch a rocket weighing hundreds of tons out of the sky. Surprising failure modes and unforeseen interactions have scuttled many ambitious projects throughout aerospace history. Yet, SpaceX has a track record of making the “impossible” possible, from landing orbital rockets to launching astronauts to pioneering global satellite internet. They’ve earned a reputation for audacity, innovation, and a tireless drive to break down barriers. With Starship, they’re betting that reusability and raw scale can change the spaceflight equation.

As the smoke clears over Starbase and engineers pore over the petabytes of data gathered from Starship Flight 5, one thing is clear: we’ve entered a new era of spaceflight. The successful Super Heavy booster catch via the chopsticks mechanism marks a turning point, proving that fully reusable rockets are here to stay. But this launch is just one step in a very long journey for SpaceX and Starship. More test flights are already on the horizon as the company aims to iron out any wrinkles and ready the vehicle for operational service.

NASA is watching closely and is eager to use Starship for its Artemis moon missions. Commercial customers are lining up to book payload slots and even crewed flights. The path to the stars has always been challenging. It’s paved with both triumphs and tragedies, breakthroughs and roadblocks. SpaceX knows this well. They’ve had their share of spectacular successes and painful failures. But with each attempt, they learn, refine, and push forward. Starship Flight 5 showed us that the improbable is possible. Catching giant rockets from the sky is no longer the stuff of science fiction.

TLDR:

  • SpaceX successfully launched and landed Starship Flight 5, catching the Super Heavy booster with “chopsticks” arms on the launch tower.
  • The chopsticks recovery technique is a groundbreaking approach that could enable rapid and complete rocket reusability.
  • If Starship succeeds, it could dramatically lower launch costs and open up new possibilities, such as Mars colonies, space tourism, and on-orbit construction.
  • Despite challenges and scepticism, SpaceX has a track record of turning “impossible” ideas into reality through relentless innovation.
  • Starship Flight 5 marks a major milestone on the path to making humanity a multi-planetary species, but much work remains.
