The Wheatley Viaduct has dominated the skyline of Halifax, West Yorkshire, for over 130 years. This impressive structure, standing 100 feet tall and 600 feet long, has recently undergone a significant £1 million restoration effort funded by National Highways’ Historical Railways Estate (HRE). The project aims to preserve this crucial piece of Halifax’s railway history for future generations.
Constructed between 1836 and 1839, the Wheatley Viaduct was integral to the Halifax High-Level Railway. Designed by renowned railway engineers George Stephenson and Thomas Gooch, it features ten arches, each 50 feet wide, and a slight curve with a 23-chain radius. Initially built to accommodate two railway lines, the viaduct primarily transported coal until the last goods train ran in 1960.

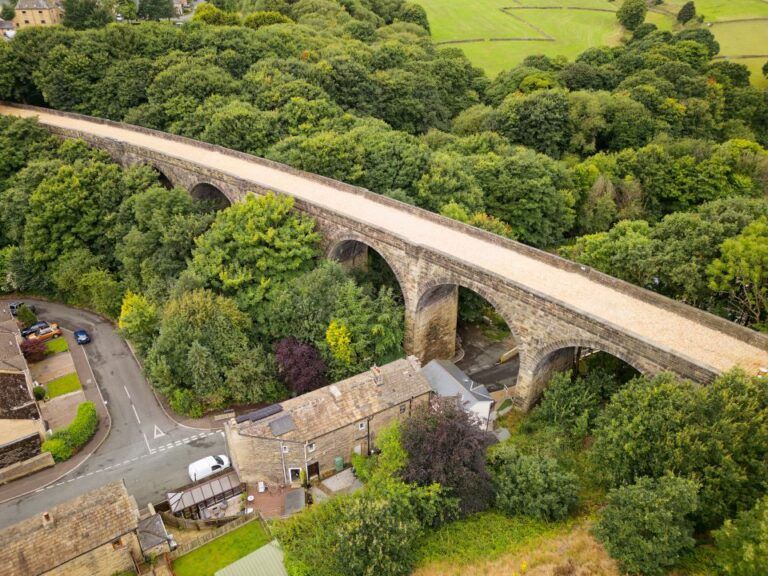

Image – After restoration
The construction of the viaduct was a significant engineering feat for its time, costing £300,000 (equivalent to approximately £41.7 million in 2023). The structure is made of rock-faced stone, ashlar, and blue brick, with unique features such as springer stones on the piers, believed to have supported the timber frame during the construction phase.

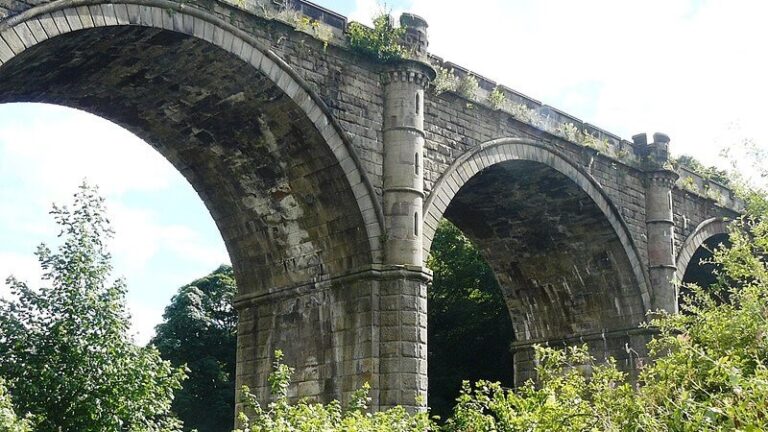

Image – Before restoration
Over the decades, the Wheatley Viaduct had fallen into disrepair. Regular examinations by the HRE revealed numerous issues that threatened the structure’s integrity. The viaduct had been closed to the public since the 1960s due to safety concerns, but it continued to face challenges from trespassers and vandalism.
HRE engineer Muhammad Musa stated, “Following one of our regular examinations, it was clear the viaduct had numerous issues, and our contractors have worked flat out since the end of last year to ensure it remains safe and in good order for generations to come.”
The £1 million restoration project, which began in late 2023, aimed to address the various issues plaguing the viaduct. The work included:
- Extensive repointing: Over 2000m of repointing was completed to strengthen the structure.
- Fracture repairs: 100m of fractures were identified and repaired.
- Anchor installation: More than 200 anchors were installed to reinforce the viaduct.
- Waterproofing: 1600 square meters of the deck were stripped, waterproofed, and reinstated.
- Masonry work: Water-damaged brickwork and masonry were replaced in the arches and piers.
- Reinforcement: One of the piers was reinforced to ensure long-term stability.
Engineering Deep Dive: Restoration Techniques and Principles
The restoration of the Wheatley Viaduct required a careful blend of modern engineering techniques and respect for the original 19th-century construction methods. Fundamental engineering principles and techniques employed include:
- Non-destructive testing: Before any work began, engineers likely used techniques such as ground-penetrating radar and ultrasonic testing to assess the internal condition of the masonry without causing damage.
- Repointing with compatible materials: The extensive repointing work (over 2000m) would have used lime mortar in a similar composition to the original. This would have ensured compatibility with the existing masonry and allowed for necessary structural flexibility.
- Crack injection: For the 100m of fracture repairs, engineers likely used a low-pressure infusion of specially formulated grouts. This technique fills voids and rebounds fractured masonry without altering the viaduct’s appearance.
- Anchor installation: The 200+ anchors installed provide additional structural support. These are likely to be stainless steel tie bars or helical ties chosen for their corrosion resistance and ability to distribute loads evenly.
- Waterproofing technologies: Modern waterproofing systems, including elastomeric membranes or cementitious coatings, were applied to 1600 square meters of the deck. This prevents water ingress, a common cause of masonry deterioration.
- Masonry replacement and conservation: Damaged brickwork and masonry were carefully removed and replaced with materials matching the original in appearance and physical properties. This requires a deep understanding of historic masonry techniques and materials science.
- Pier reinforcement: The reinforcement of one pier likely involved a combination of techniques, such as underpinning, grouting, or the installation of internal reinforcement bars, carefully designed to strengthen the structure without altering its external appearance.
- Structural monitoring: Engineers probably installed a network of sensors to monitor the viaduct’s movement and structural health in real-time, allowing for proactive maintenance in the future.
These engineering approaches demonstrate the delicate balance between preserving the viaduct’s historical integrity and ensuring its structural soundness for years.
The restoration project wasn’t just about preserving history; it also considered the local ecology. Ecologists conducted bat surveys before the repair works began to identify whether bats were using the structure. This allowed them to implement measures to work around the bats and prevent them from entering the structure during the restoration.
Four bat boxes were installed as part of the project, and 95 bat crevices were left open for bats to use during the hibernation season. This approach demonstrates a commitment to balancing historical preservation with ecological responsibility.
Dave Martin, senior project manager at contractor AmcoGiffen, emphasized the viaduct’s importance to the local skyline and expressed pride in securing its future for everyone to enjoy. The project also highlights the ongoing efforts of the Historical Railways Estate to maintain over 3,100 structures and assets that were once part of Britain’s rail network. These structures are physical reminders of the country’s rich railway history and the engineering legacy of past generations.
By combining modern engineering techniques with respect to historical construction methods, the project team has successfully preserved a piece of railway heritage, protected local wildlife, and improved public safety.
The viaduct is a testament to the enduring legacy of 19th-century engineering and the continued importance of maintaining our historical infrastructure. The Wheatley Viaduct restoration project demonstrates how, with proper care and investment, these monumental structures can be preserved for future generations to appreciate and learn from.
TLDR:
- Wheatley Viaduct in Halifax undergoes £1m restoration
- The project preserves a 130-year-old structure built for the Halifax High-Level Railway
- Restoration includes repointing, fracture repairs, and waterproofing
- Ecological measures implemented to protect the local bat population
- The project highlights the importance of preserving Britain’s railway heritage
